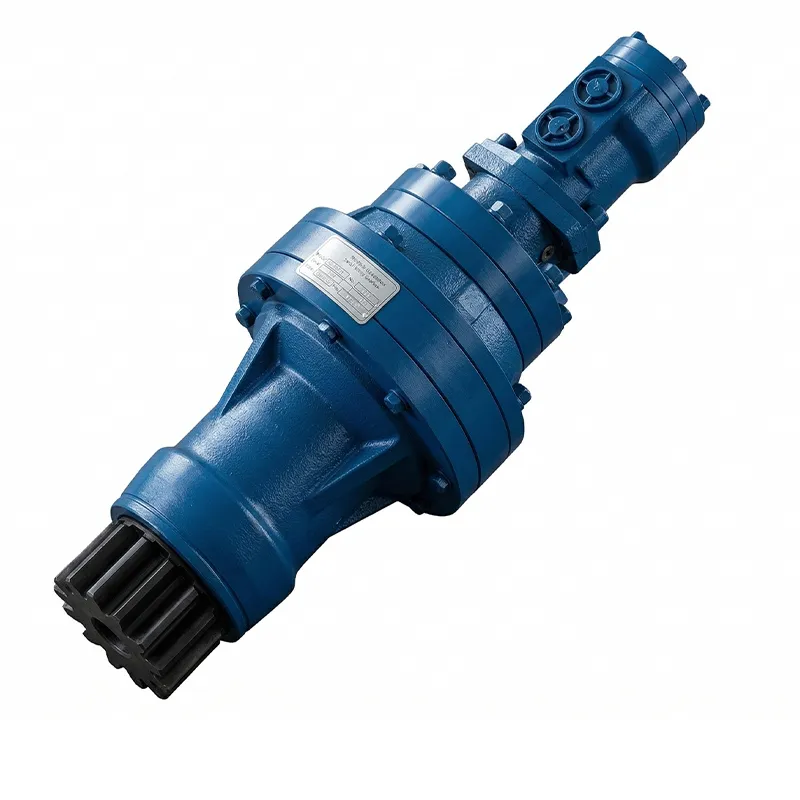

SD Series Mobile Slewing Drive Planetary Gearbox

Product Overview and Durability

The SD series mobile slewing drive planetary gearbox serves as a foundational power transmission unit for the heavy equipment industry, specifically targeting applications across South Korea and neighboring East Asian industrial hubs. Equipment designers and fleet operators require rotational drive systems that consistently withstand brutal environmental conditions and continuous physical abuse. Engineered to rotate the massive superstructures of heavy machinery, this gear unit provides the necessary torque to turn the upper cabins of large-scale excavators, the extending booms of mobile cranes, and the heavy processing attachments of forestry vehicles. Heavy industries operate under tight deadlines, meaning any mechanical failure results in severe financial losses. The SD series actively addresses this by focusing entirely on durability and continuous uptime.



To ensure the internal gears remain perfectly lubricated and protected from the outside world, the planetary reduction gearbox utilizes a comprehensive sealing configuration. Heavy-duty multi-lip Viton seals are installed at all moving shaft openings. This barrier securely retains the high-performance synthetic gear oil while actively blocking the ingress of rainwater, deep mud, and corrosive industrial chemicals. Space is often highly restricted within the chassis of modern mobile equipment. The compact cylindrical geometry of this drive planetary gearbox allows it to fit directly into the tight slewing ring bearing space without adding excess, non-functional weight. This high power-to-weight ratio helps equipment manufacturers build lighter, more agile machines, ultimately improving vehicle fuel efficiency and increasing the safe payload lifting capacity for the end user.

Technical Specifications and Load Data

Selecting the appropriate size and mechanical capacity for your transmission is the most critical step in preventing premature equipment failure. The SD series offers a vast catalog of frame sizes, mathematically stepped to accommodate torque requirements ranging from compact urban utility loaders to massive portside shipping container cranes. Engineering teams in South Korea working on rotating mechanical platforms must carefully evaluate their specific power density needs, gear reduction options, and the thermal dissipation limits of these units to guarantee safe structural integration.

📊 Nominal Torque Versus Maximum Torque

When reviewing the performance data in the table below, distinguishing accurately between the nominal torque rating and the maximum torque rating is fundamentally essential for machine safety. Nominal torque defines the continuous, steady mechanical load that the planetary gearbox can transmit indefinitely under standard daily working conditions without experiencing thermal oil breakdown, bearing deformation, or accelerated gear tooth fatigue. In sharp contrast, the maximum torque indicates the absolute physical threshold the cast iron casing and internal steel gears can survive during short, intermittent shock events. Examples of this include an emergency braking sequence on a fully loaded tower crane. Sizing your drive planetary gearbox based solely on the maximum torque rating for a continuous load application will inevitably cause rapid fluid overheating and catastrophic system failure.

⚙️ Sizing and Selection Guidelines

Procurement teams must apply a strictly calculated service factor to the nominal torque values based entirely on the machinery's daily duty cycle and the operational severity of the job site. Heavy continuous slewing applications operating twenty-four hours a day require a significantly higher service factor to maintain adequate safety margins. Proper mechanical integration also involves verifying the input speed from the main hydraulic or electric motor and mathematically calculating the desired final output rotational velocity at the slewing ring. The wide range of reduction ratios available allows for precise speed adjustments, ensuring the primary prime mover operates continuously within its peak efficiency band. We heavily encourage operators to consult the table below to find the specific model that perfectly matches their motor's power output.

Types and Engineering Characteristics

When mechanical engineers evaluate motion control solutions for heavy industry, the SD series planetary gearbox consistently outperforms traditional parallel shaft and worm gear reducers across multiple technical metrics. Traditional gearboxes rely heavily on single-point gear tooth contact, which naturally limits their absolute torque capacity and requires massive physical housings to handle heavy loads without snapping. By analyzing the engineering geometry, we can clearly see exactly why planetary designs dominate the modern mobile equipment market.

⚡ Exceptional Power Density

The most notable mechanical advantage is the extraordinary power density. Due to the concentric, coaxial arrangement of the central input and output shafts, and the dynamic load-sharing nature of the internal epicyclic gears, a planetary drive gearbox delivers the exact same torque output as a conventional helical gearbox that is nearly three times its physical size and weight. In mobile machinery applications such as truck-mounted lifting cranes or specialized forestry harvesters, space constraints within the chassis are severe. Unnecessary transmission weight negatively impacts vehicle payload capacity and heavily increases diesel fuel consumption. The compact cylindrical geometry of the SD series solves this engineering dilemma perfectly by fitting easily into tight mechanical enclosures.

🛡️ Superior Overhung Load Capacity

Another highly significant characteristic of the SD series mobile slewing drive planetary gearbox is its unmatched ability to handle immense overhung and thrust loads safely. A slewing drive securely attached to a massive excavator boom is subjected to highly aggressive cantilever forces during operation. Our structural design integrates oversized, high-capacity tapered roller bearings directly into the heavily reinforced output housing. This internal structural reinforcement ensures that external bending moments are absorbed entirely by the thick cast-iron casing rather than deflecting the delicate internal gear shafts. This prevents uneven gear wear and permanently maintains optimal tooth contact patterns.

🔧 High Mechanical Efficiency

The pure rolling action of the involute steel teeth within the planetary reduction gearbox guarantees mechanical power transmission efficiencies consistently exceeding ninety-five percent per individual reduction stage. This high efficiency rating directly translates into less mechanical friction and lower heat generation. Consequently, this drastically reduces the cooling requirements for the machine's hydraulic system and actively lowers the overall fuel consumption for the primary diesel engine, lowering the total cost of ownership.

Working Principle of Planetary Gearboxes

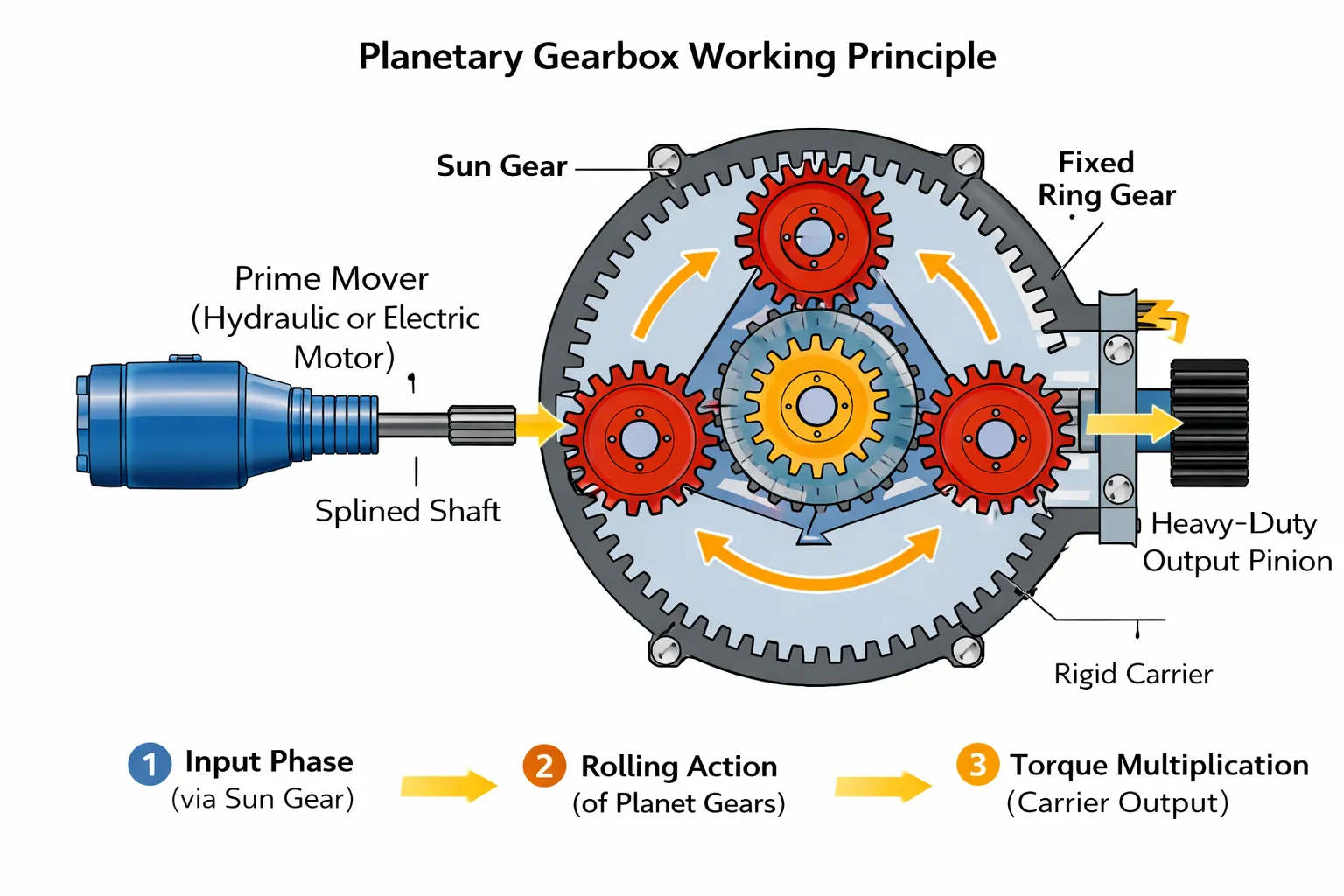

To truly appreciate the mechanical superiority of the SD series, engineers and operators must fundamentally understand the internal kinematics that define how a planetary gear set functions. The structural configuration closely mirrors a solar system, consisting of three primary metallic components operating in perfect physical harmony. This elegant mathematical relationship governs the speed reduction and extreme torque multiplication process that makes heavy lifting possible.

• 1. The Input Phase via Sun Gear
  Mechanical power is physically introduced into the system through the central high-speed sun gear, which is usually splined directly to a high-speed hydraulic or electric prime mover motor. As the prime mover rotates the sun gear at a high velocity, the precisely machined gear teeth simultaneously mesh with the three or four surrounding planet gears.
• 2. The Rolling Action of Planet Gears
  Because the large outer ring gear is securely bolted to the sturdy equipment chassis and remains completely stationary, the individual planet gears cannot simply spin in place. Instead, they are physically forced to roll continuously along the inner circumference of the fixed ring gear.
• 3. Torque Multiplication and Carrier Output
  This relentless rolling action mechanically forces the rigid planet carrier—which physically holds the steel axles of the planet gears—to rotate in the exact same direction as the input sun gear, but at a significantly reduced velocity. This dramatic mechanical reduction in RPM directly results in a proportional, massive increase in usable output torque.

In a planetary reduction gearbox used for slewing, this amplified torque is transmitted smoothly to a heavy-duty output pinion, which then engages the large external slewing ring bearing of the rotating platform. By distributing the heavy mechanical force across multiple gear meshes simultaneously, this robust architecture severely minimizes the stress concentrated on any single individual gear tooth. This load-sharing characteristic drastically lowers the physical risk of sudden metal shearing under maximum load conditions. For applications requiring astronomical torque levels and extremely slow, precise rotational speeds, the gearbox utilizes a multi-stage configuration. In these setups, the carrier of the first epicyclic stage acts directly as the input sun gear for the second stage, multiplying the reduction ratio exponentially within the same compact iron housing.

Application Scenarios in Heavy Industries

A highly frequent question among maintenance technicians and procurement officers is, what are planetary gearboxes used for in practical, daily commercial operations? The technical scope of application for the SD series mobile slewing drive planetary gearbox encompasses nearly every commercial sector that requires heavy physical lifting, precise spatial positioning, and unrelenting rotational power in poor weather conditions.

🏗️ Heavy Construction and Deep Excavation

In the global construction sector, these mechanical units serve as the central pivot mechanism for heavy excavators, mini-diggers, and deep foundation drill rigs. Mounted vertically inside the machine, the gearbox engages the massive swing bearing physically connecting the upper rotating house of the machine to the heavy tracked undercarriage. This specific mechanism allows skilled operators to swing heavy buckets of dense earth smoothly. An integrated, fail-safe multi-disk parking brake automatically engages the exact moment hydraulic fluid flow stops, securely locking the heavy upper structure in place to completely prevent dangerous drifting on steep sloped terrain. This precise control is essential for safety in crowded urban environments.

🚢 Port Logistics and Mobile Lifting Cranes

Large mobile cranes, towering construction cranes, and commercial straddle carriers rely exclusively on these high-torque drives to position exceptionally heavy loads with absolute millimeter precision. In South Korea's high-traffic port logistics infrastructure in cities like Busan and Incheon, maneuvering multi-ton shipping containers safely requires a planetary drive gearbox that will absolutely not suffer from internal gear backlash. The SD series provides the exact, continuous torque multiplication required to smoothly rotate massive crane booms against high, unpredictable coastal wind resistances without stuttering or dropping the load.

🚜 Advanced Agricultural and Forestry Operations

Modern, heavy-duty forestry harvesters utilize these robust mechanical drives to rapidly rotate heavy cutting and delimbing processor heads, actively grappling massive timber on steep, dangerous mountainsides. In large-scale commercial agriculture, heavy trailed farming implements and self-propelled feed mixers use planetary drives directly for continuous wheel propulsion. The highly sealed nature of the cast iron unit actively prevents deep mud, abrasive crop residue, and chemical fertilizer dust from entering the geartrain, ensuring completely uninterrupted farming cycles during extremely tight harvesting windows.

Future Development Trends and Opportunities

The mobile machinery and heavy equipment industry is currently undergoing a rapid, aggressive technological transformation. The engineering market for the SD series planetary gearbox is actively evolving to meet the complex demands of next-generation equipment designs, focusing heavily on environmental sustainability, lower noise emissions, and seamless digital integration. Machinery operators in South Korea are demanding components that align with strict government environmental mandates and efficiency targets.

⚡ The Unstoppable Shift Toward Electrification

One of the most prominent industrial trends is the widespread commercial transition from traditional diesel-hydraulic systems to fully electric or high-capacity hybrid-electric drivetrains. High-voltage electric motors deliver their absolute peak rotational torque instantly from zero RPM, generating severe, immediate mechanical stress spikes on all connected driveline components. To successfully accommodate this highly aggressive power delivery curve, the next generation of the drive planetary gearbox features significantly tighter internal machining tolerances and highly specialized shock-absorbing input coupling designs. The SD series guarantees seamless physical compatibility with modern high-voltage servo motors used extensively in eco-friendly, zero-emission urban construction equipment operating in heavily regulated cities.

📡 Smart IoT Sensors and Predictive Maintenance

Heavy fleet managers are increasingly demanding highly smart machinery to completely eliminate expensive unplanned downtime. We are actively seeing a massive industrial push to embed digital vibration, internal oil temperature, and acoustic frequency sensors directly into the cast iron planetary reduction gearbox casing. These advanced IoT sensors stream real-time operational physics data directly to centralized, cloud-based fleet management software. By constantly monitoring microscopic changes in internal gear meshing frequencies, maintenance teams can accurately mathematically predict a mechanical bearing failure several months before it actually happens. This advanced predictive maintenance approach drastically reduces expensive field repairs and keeps critical, multi-million dollar construction schedules strictly on track.

🔬 Advanced Metallurgy and Synthetic Lubrication

Continuous advancements in material science are also leading to the development of lighter, significantly stronger metal alloys. These advanced materials allow the gear units to operate efficiently at much higher ambient temperatures and heavier load ratings without requiring a larger physical footprint. Furthermore, the development of high-performance synthetic extreme-pressure lubricants extends the necessary oil change intervals, reducing environmental waste and lowering the total maintenance costs for fleet operators.

Complementary Power Transmission: The PTO Shaft

While the SD series planetary gearbox operates as an incredibly powerful independent mechanical unit, it frequently requires a highly reliable mechanical connection to the main vehicle engine, especially in heavy tractor-drawn agricultural and auxiliary mobile applications. This crucial, dynamic power bridging is physically accomplished through the use of a heavy-duty Power Take-Off (PTO) shaft. A high-quality PTO shaft acts as the flexible, rotating mechanical link between the main vehicle's power source and the splined input flange of the planetary reduction gearbox driving the active implement.

If the mechanical power input is erratic, poorly balanced, or the shaft lacks proper telescopic sliding movement, severe lateral thrust forces will rapidly destroy the gearbox input bearings, leading to catastrophic failure. Because towed mobile machinery constantly moves over highly uneven, rutted terrain, the physical distance and operating angle between the tractor and the heavy implement constantly change. Our matching series of PTO shafts feature precision-forged steel universal joints that can transmit high horsepower smoothly, even when actively operating at very acute driveline angles. The heavy-walled steel telescoping tubing easily accommodates these dynamic driveline length changes safely.

Why Choose Ever-Power for Your Drive Solutions

Selecting the absolutely correct manufacturing partner for your critical industrial transmission components directly impacts the safety, reliability, and financial profitability of your entire machinery fleet. Ever-Power operates heavily as a premier global manufacturer of high-precision mechanical power solutions. We maintain absolute control over the entire production process—from the initial forging of the raw steel billets to the final assembly and painting. This guarantees a level of manufacturing consistency that third-party assemblers simply cannot match.

• 🏭 Advanced Automated Manufacturing
  We aggressively utilize multi-axis CNC machining centers and highly automated gear hobbing machinery. This massive capital investment ensures that every single SD series planetary gearbox strictly adheres to microscopic dimensional tolerances, permanently guaranteeing perfect gear meshing and low noise output.
• 🔍 Rigorous In-House Quality Assurance
  Our engineering teams utilize highly accurate coordinate measuring machines to inspect complex gear tooth profiles. Every completed drive planetary gearbox undergoes intense dynamic testing on our custom dynamometer benches to strictly verify maximum torque capacity and check for microscopic oil leaks under high pressure.
• 📦 Optimized Regional Asian Logistics
  For our commercial clients specifically in South Korea and neighboring regions, we heavily maintain extensive physical inventories of standard assembled units and critical internal replacement parts. We coordinate rapid air and sea freight directly to major industrial hubs like Incheon and Busan to completely eliminate your machine downtime.
• 🤝 Expert Dedicated Engineering Support
  Our technical support engineering staff provides completely free consultation for custom chassis mounting configurations, precise internal gear ratio calculations, and severe thermal capacity evaluations to ensure you purchase the exact mathematical model required for your application.

Our commitment to engineering excellence and customer satisfaction has made us the preferred supplier for heavy equipment manufacturers globally. By choosing Ever-Power, you are investing in a reliable power transmission solution backed by decades of industry experience and deep technical expertise.
