PLS Precision Planetary Gearbox for Industrial Chain Drives

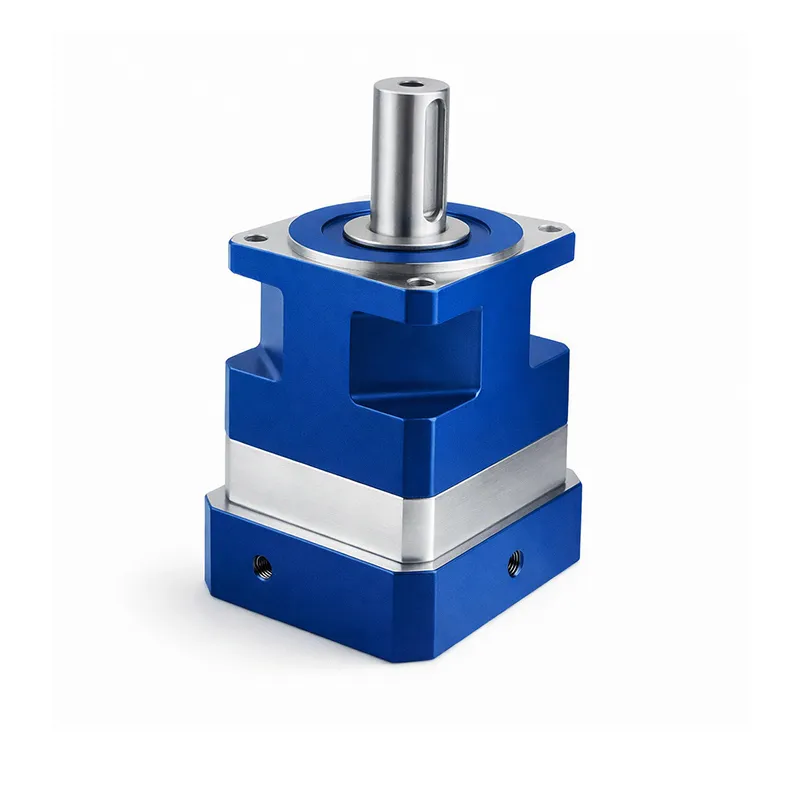

Product Overview

The PLS precision planetary gearbox serves as a fundamental mechanical component for transmitting power and reducing speed within heavily loaded industrial chain drives.In the fast-paced manufacturing sectors of South Korea and neighboring regions, minimizing unexpected equipment downtime is a top priority for facility maintenance managers.

The PLS series addresses this strict requirement by incorporating a fully sealed, lifetime lubrication system. High-performance synthetic grease is locked safely inside the unit using advanced fluoro-rubber oil seals, preventing the ingress of dust, moisture, and abrasive manufacturing particles. This mechanical design entirely removes the necessity for routine fluid maintenance, allowing technical teams to focus on other plant operations instead of performing constant oil changes. Additionally, the highly precise internal geometry guarantees minimal gear clearance and reduces structural vibration during high-speed machine cycles. When connected to industrial servo motors, the gearbox translates the rapid rotational energy into smooth, accurate linear or rotary motion. This exactness ensures that automated assembly lines, material handling conveyors, and multi-axis robotic systems perform their complex positioning tasks with exact repeatability, shift after shift.



Technical Specifications and Dimensional Data

📊 Standard Reduction Ratios

The reduction ratios are available in both single-stage and double-stage configurations to provide maximum machine design flexibility. Single-stage setups provide reduction ratios between 3 and 10, which are highly suitable for applications needing moderate speed reduction combined with maximum mechanical efficiency. Double-stage setups cascade the internal gear sets to achieve much higher reduction ratios, ranging from 12 up to 100. This configuration provides immense torque multiplication for heavy lifting apparatuses or slow-moving bulk material conveyor systems.

⚙️ Load Capacities and Thermal Limits

The general performance specifications clearly define the broad operational limits of these power transmission units. The smaller PLS70 model can handle maximum input speeds up to 14,000 revolutions per minute, making it highly suitable for rapid indexing tasks in high-speed packaging machines. Conversely, the PLS190 model focuses on raw pulling power, offering a maximum radial torque of 12,000 Newtons and an impressive axial torque limit of 28,000 Newtons. These high load capacities ensure that the output shaft will not bend or fracture when subjected to the heavy lateral pulls of large steel sprockets and industrial chains. Furthermore, the acoustic profile of the entire series is kept very low, ranging from 58 to 70 decibels, significantly improving the working conditions for factory personnel by reducing hazardous noise pollution.

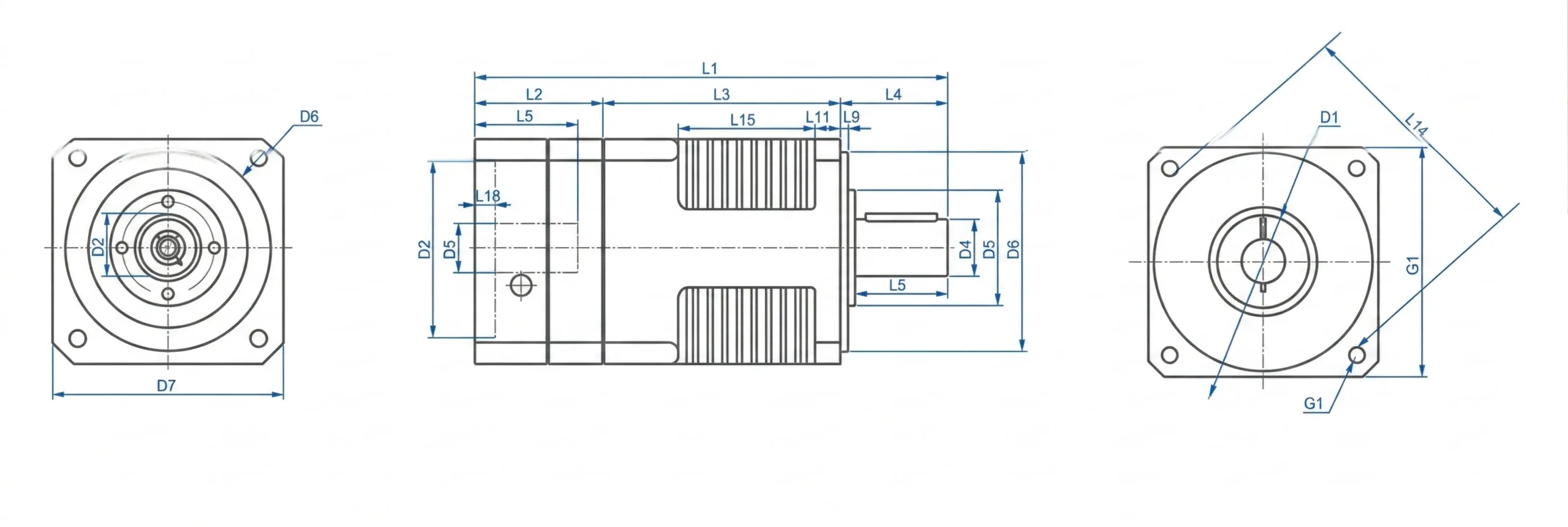

📐 Precise Dimensional Measurements

To ensure perfect mechanical integration into existing machinery, the dimensional data tables provide precise measurements for both the input and output ends of each model. Engineers must carefully review critical dimensions such as the pilot diameters, output shaft lengths, and mounting hole configurations to guarantee that the planetary gearbox aligns correctly with the driving motor and the driven implement. Proper alignment is crucial because it prevents induced radial stresses on the internal bearings, ensuring the unit reaches its maximum designed lifespan.

Types and Characteristics of Planetary Gearboxes

Industrial gear systems are categorized based on their structural layout, internal geometry, and gear meshing principles. The PLS series falls securely into the inline planetary category, meaning the input shaft from the driving motor and the output shaft connecting to the load share the exact same rotational axis. This coaxial design is highly valued by machine builders because it simplifies the mechanical layout of the equipment, allowing for straight-line power transmission without the need for complex right-angle bevel gears or inefficient off-axis belt pulleys.

⚙️ Coaxial Inline Architecture

The inline structure naturally creates a highly compact footprint, saving valuable space on crowded factory floors and reducing the overall weight of the machinery while still delivering exceptional mechanical power to the driven components. In applications where spatial limits are strict, such as inside robotic arm joints or narrow conveyor bases, this straight-line geometry prevents the need for extensive frame modifications.

⚖️ Superior Load Distribution

One of the defining characteristics of a high-quality planetary drive gearbox is its superior load distribution capability. In a standard parallel shaft reducer, the motor's force is transferred through a single contact point between two individual gears. This concentrates all the mechanical stress onto one or two teeth at a time, leading to faster wear and potential gear fracture under heavy dynamic loads. The planetary design fundamentally changes this dynamic by utilizing multiple planet gears that mesh simultaneously with the central sun gear and the outer ring gear. Because the driving forces are shared equally among three or four planet gears, the mechanical stress on any single tooth is drastically reduced. This allows the gearbox to handle much higher torque loads within a smaller housing, resulting in an outstanding power-to-weight ratio that traditional gearboxes cannot match.

🎯 Ultra-Low Backlash Precision

Another critical characteristic is the exceptionally low backlash achieved through strict manufacturing tolerances. Backlash refers to the slight mechanical clearance between the mating gear teeth. In high-precision automation, excessive backlash causes the output shaft to lag behind the motor's movements, leading to severe positioning errors. By employing advanced CNC gear grinding techniques and precise assembly methods, the clearance in the PLS series is minimized to a fraction of a degree. This rigid torsional stiffness ensures that when the servo motor stops, the driven load stops immediately without any drifting or oscillation, making it the perfect transmission choice for CNC routing machinery, medical equipment, and highly accurate robotic indexing tables.

Mechanics and Operation: How Planetary Gearboxes Work

For maintenance personnel and design engineers, understanding exactly how planetary gearboxes work provides valuable insight into their operational limits and maintenance requirements. The internal mechanics closely resemble a small solar system, which is where the design gets its name. The entire assembly is specifically engineered to safely leverage physics to multiply output force.

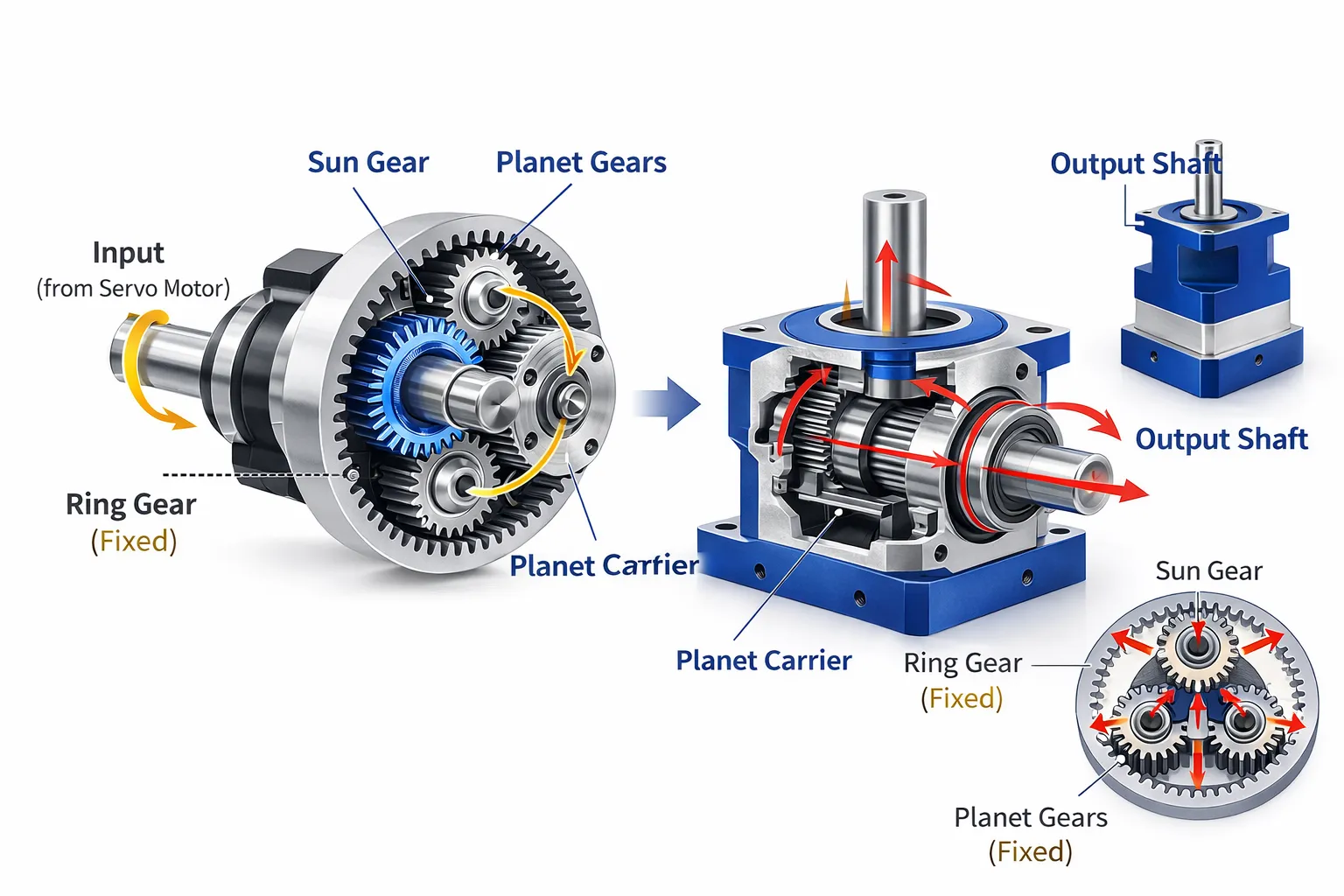

🔄 Sun, Planet, and Ring Gear Layout

At the center of the mechanical assembly is the sun gear, which is directly coupled to the input shaft of the driving electric or servo motor. Surrounding this central gear are multiple planet gears. These planet gears are securely mounted onto a rigid frame known as the planet carrier. The entire assembly is then enclosed within a large outer ring gear that features machined teeth on its inner circumference. In the standard configuration used by the PLS series, this outer ring gear is fixed firmly to the stationary housing of the gearbox and does not move during operation.

⚡ The Torque Multiplication Phase

When the electric motor turns the input shaft, it spins the central sun gear at high speed. The sun gear's teeth mesh with the planet gears, forcing them to rotate on their own axes. Because the outer ring gear is completely stationary, the rotating planet gears must physically roll along the inside track of the ring gear. As they roll forward along this circular path, they drag the planet carrier along with them. Since the output shaft is directly connected to the planet carrier, it rotates at the exact same speed as the carrier. The speed reduction occurs because the planet carrier revolves much slower than the high-speed sun gear, and this mathematical reduction in speed produces a proportional and massive increase in torque output.

🛠️ Implementing Double-Stage Reduction

This dynamic interaction is what gives the planetary reduction gearbox its immense structural strength. The continuous, multiple-tooth engagement ensures that power is transferred smoothly without the jerky, pulsing movements commonly associated with older chain or belt technologies. In applications requiring even slower operational speeds, a two-stage mechanism is utilized. The output carrier of the first gear set acts as the input sun gear for a second, identical gear set housed within the same outer casing. This compounded mathematical reduction allows heavy industrial machinery to pull massive loads using relatively small, high-speed electric motors, optimizing the overall energy consumption of the factory and lowering electrical costs.

Diverse Application Scenarios in Modern Industry

The sheer adaptability and high torque density of the PLS series make it a critical driving component across a wide variety of demanding industrial sectors. In the advanced manufacturing hubs located in South Korea and the broader East Asian region, these units provide the vital force needed for continuous production.

🤖 Precision Control in Automated Robotics

Electronics and semiconductor factories rely heavily on automated transportation systems. Automated guided vehicles (AGVs) transporting delicate silicon components across the factory floor require drive systems that can start and stop smoothly without causing sudden jerks or vibrations. The exceptionally low backlash and high mechanical efficiency of the planetary transmission provide the precise wheel control necessary for these vehicles to navigate safely through tight corridors. Additionally, multi-axis robotic arms used in spot welding and micro-component assembly depend on the exact positioning capabilities of these gearboxes to ensure every manufactured product meets strict quality assurance standards.

🏗️ Heavy Material Handling

Heavy industrial material handling represents another major application scenario for these powerful units. Mining operations, steel processing mills, and large-scale automotive assembly plants utilize massive conveyor belts and heavy industrial chain drives to move raw materials and finished heavy goods. These conveyors operate continuously under varying loads and require a transmission system that will not fail under constant mechanical stress. The PLS190 model, with its impressive 28,000 Newtons axial load capacity, easily manages the heavy pulling forces exerted by large steel conveyor sprockets. The distributed load within the planetary gear set absorbs the shock of sudden heavy material drops, protecting the electric motor from destructive back-loads and preventing unscheduled, costly production stoppages.

🚜 Extreme Environment Agricultural Equipment

The agricultural equipment manufacturing sector also benefits immensely from this enclosed transmission technology. Large-scale farming implements like rotary soil tillers, seeders, and heavy fertilizer spreaders operate in extremely harsh outdoor environments. They are constantly exposed to wet dirt, thick mud, and corrosive chemical fertilizers. The fully sealed, lifetime-lubricated housing of the PLS series prevents these abrasive environmental contaminants from reaching the internal gears. The unique ability to function reliably in freezing temperatures as low as negative twenty-five degrees Celsius ensures that agricultural machinery performs flawlessly during early spring planting or late autumn harvesting, providing modern farmers with the mechanical dependability required for large-scale, high-yield crop production.

Matching Products: Power Take-Off (PTO) Shafts

A high-quality planetary gearbox is highly responsible for multiplying torque and reducing motor speed, but it requires a totally reliable method to receive power from the primary engine or electric motor. In many mobile industrial platforms, tractors, and heavy agricultural implements, the gearbox is not mounted directly to the power source. Instead, the mechanical connection is made using a Power Take-Off shaft, commonly referred to as a PTO shaft. The PTO shaft is a specialized, heavy-duty driveline component designed to transfer rotational energy over a distance while accommodating constant changes in angle and length. When machinery moves over uneven ground or articulates during operation, the precision universal joints and telescoping steel tubing of the PTO shaft flex safely to maintain a continuous, smooth flow of power to the gearbox input shaft.

🛑 Preventing Driveline Destruction

Selecting the correct PTO shaft is a highly critical engineering task that should not be overlooked. If an undersized, poorly manufactured, or improperly balanced shaft is connected to the planetary drive gearbox, it will generate severe rotational vibrations. These vibrations travel directly into the gearbox housing, causing the input bearings to fatigue rapidly and eventually shatter under pressure. To prevent this catastrophic failure, our manufacturing facility produces a complete line of heavy-duty PTO shafts engineered specifically to match the torque ratings, operating speeds, and spline dimensions of the PLS series gearboxes. Our shafts are constructed from high-yield strength steel and feature precision-forged yokes, ensuring that the massive rotational forces are transmitted safely and efficiently without introducing destructive lateral loads to the transmission.

🔗 Seamless System Integration

We strongly advise our industrial and agricultural clients to source their complete power transmission assemblies from a single, reputable manufacturer. By purchasing your PTO shafts alongside your gearboxes directly from Ever-Power, you ensure perfect dimensional compatibility and vastly simplify your procurement process. Furthermore, our PTO shafts can be equipped with protective slip clutches or shear pin mechanisms. If the driven machinery strikes a solid rock and jams, the safety clutch will immediately disengage, absorbing the kinetic shockwave and preventing the sudden torque spike from destroying the internal gears of the planetary transmission. Contact our technical sales team today to find the exact PTO shaft configuration required for your specific machine setup.

Why Choose Ever-Power for Your Drive Solutions

The long-term reliability of your industrial machinery depends heavily on the quality of the components you choose and the technical capabilities of the manufacturer standing behind them. Ever-Power is a globally recognized manufacturer and exporter of premier mechanical power transmission products, providing unparalleled value to our international clients.

• 🌟 Complete Vertical Integration

  We have built our strong market reputation on decades of hands-on engineering experience, operating massive production facilities equipped with the latest CNC machining centers, automated gear hobbing equipment, and high-precision profile grinders. We maintain total control over our entire manufacturing pipeline, from the initial procurement of raw alloy steels to the final assembly and rigorous testing of the finished gear units. This strict vertical integration ensures that every single product leaving our factory meets exacting dimensional tolerances and strictly conforms to international ISO quality standards.

• 🔬 Uncompromising Quality Assurance

  Quality assurance is a fundamental, uncompromising aspect of our daily manufacturing operations. Before any planetary reduction gearbox is approved for final packaging, it must pass a battery of rigorous laboratory tests. We utilize advanced coordinate measuring machines to verify microscopic gear tooth profiles, and soundproof testing chambers to ensure the acoustic noise output remains well below the specified limits. We also perform continuous dynamic load testing to verify the torque capacities, guaranteeing that the units will perform exactly as advertised when installed in the field.

• 🚢 Optimized Export Logistics

  Our international export logistics network is highly optimized and strategically managed. This allows us to rapidly ship bulk container orders and critical replacement parts directly to major industrial maritime hubs across South Korea, Japan, and Southeast Asia. By maintaining extensive inventories of standard components, we effectively minimize your supply chain delays and keep your critical production lines moving without costly interruptions.

• 💡 Dedicated Engineering Support

  Beyond our massive manufacturing capacity, we pride ourselves on delivering exceptional technical support and personalized customer service. Our dedicated engineering team routinely assists machine builders with complex load calculations, kinetic inertia matching, and custom product modifications. If your specific application requires a unique input flange dimension to match a regional servo motor brand, or a customized output shaft length, our highly flexible manufacturing services can accommodate those specific needs quickly and accurately. We aim to build long-term, trustworthy partnerships with our clients, providing comprehensive warranties and highly responsive after-sales consultation.

Frequently Asked Questions (FAQ)

1. What is the main difference between a planetary gearbox and a regular helical gearbox?
The primary difference is the exceptionally high torque-to-weight ratio. By distributing the mechanical load across multiple planet gears simultaneously, the unit can transmit significantly more torque in a much smaller, lighter housing compared to a standard spur gearbox, which relies entirely on a single, highly stressed gear contact point.

2. Do I need to schedule regular oil changes for the PLS series?
No. The PLS series features an advanced lifetime lubrication design. The internal mechanical components are packed with high-grade synthetic grease at the factory and sealed securely with industrial fluoro-rubber rings, completely eliminating the need for periodic oil changes and significantly reducing your overall maintenance labor.

3. How do I choose the correct reduction ratio for my specific machinery?
You determine the required ratio by mathematically dividing the standard operating speed of your input motor by the target speed of your driven load. You must also calculate the required pulling force to ensure the multiplied output torque does not exceed the gearbox's maximum rated radial or axial capacity.

4. Are these gearboxes compatible with servo motors used in South Korean factories?
Yes, the input flanges are precision-machined to standard industry dimensions that match major global and regional servo motor brands frequently used in South Korea. We also offer fully customized adapter plates and shaft collets to ensure a perfect, vibration-free fit for your specific motor model.

5. Can the drive planetary gearbox operate in reverse without causing internal damage?
Absolutely. Planetary gear systems are inherently bidirectional by design. They provide the exact same speed reduction, massive torque multiplication, and high mechanical efficiency whether they are running continuously in a clockwise or counter-clockwise direction.

6. What is the maximum safe operating temperature for these transmission units?
The standard PLS series is engineered to operate safely and efficiently in ambient temperatures ranging from negative twenty-five degrees Celsius to positive ninety degrees Celsius. Operating continuously above ninety degrees Celsius can degrade the synthetic grease and damage the oil seals, leading to potential mechanical failure.

7. How does the manufacturer ensure the low noise level of the gearbox?
We achieve low noise emissions, ranging from 58 to 70 decibels, by using high-precision CNC gear grinding equipment and applying specialized modifications to the gear tooth profiles. This ensures the gears mesh smoothly together without hard impacts, reducing both vibration and acoustic noise.

8. What is the difference between radial torque and axial torque limits?
Radial torque refers to the lateral force applied perpendicular to the output shaft, like the heavy pull of a tight conveyor chain. Axial torque is the pushing or pulling force applied directly parallel to the shaft. The PLS series is built with heavy-duty bearings to handle high levels of both forces easily.

9. If my automated machinery experiences a sudden jam, will the gearbox break?
While the gearbox is built with hardened steel to absorb heavy shock loads, a severe, sudden jam can cause internal damage. We highly recommend using our PTO shafts equipped with slip clutches or shear pins to disconnect the power flow and protect the transmission during a catastrophic jam.

10. How long does shipping typically take for bulk orders to East Asian markets?
Because we maintain large warehouse inventories of standard components and utilize an optimized international export network, standard orders can often be assembled, tested, and shipped to major ports in South Korea or Japan within a few short weeks, ensuring your production stays perfectly on schedule.

11. How do planetary gearboxes work to minimize backlash in robotic arms?
They minimize backlash by employing multiple planet gears tightly meshed within the ring gear. The precise CNC grinding of these multiple contact points leaves virtually no free space between the teeth. When the motor commands a stop, the multiple tight engagements halt the output shaft instantly without mechanical drifting.
